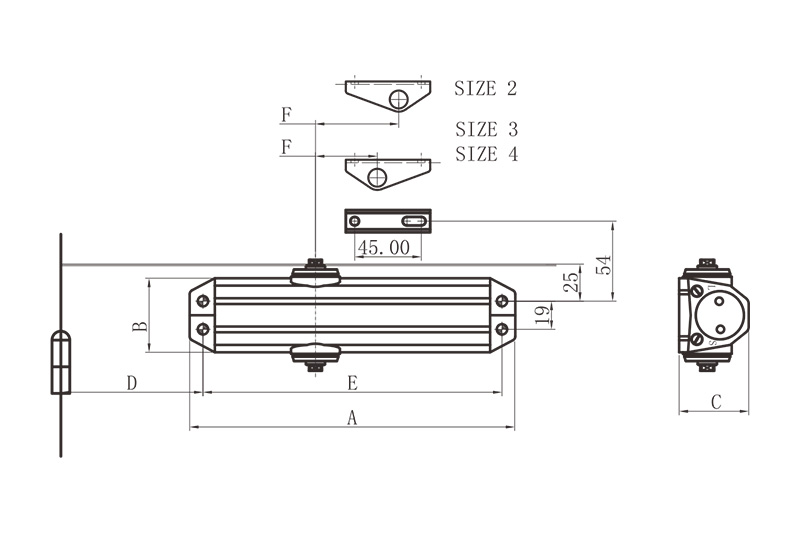

| Item | Closer Size | Overall dimension | Installation dimension | Applicable door weight(kg) | Applicable door width(mm) | Function | Please install according to the instruction | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||||

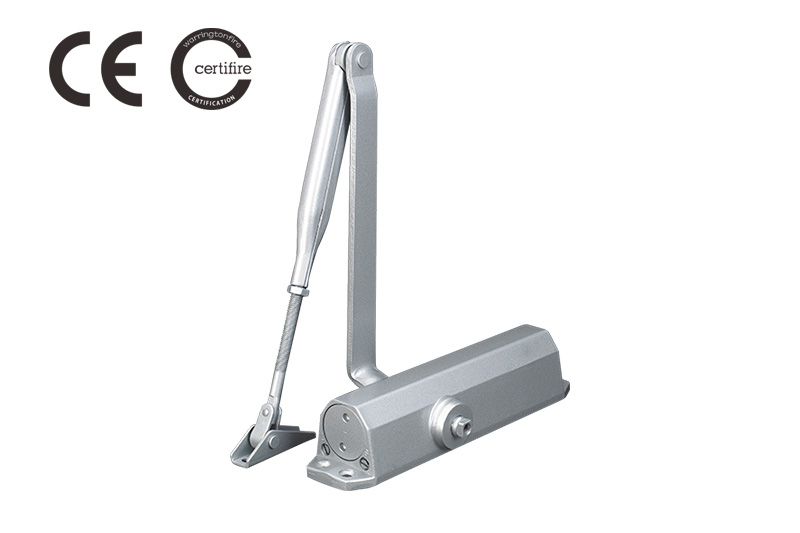

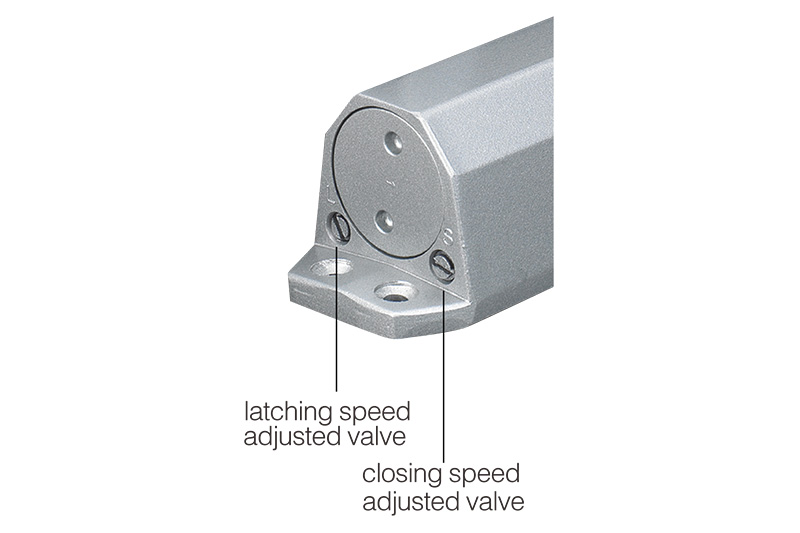

| D3023AW | 3# | 220 | 50 | 47 | 96 | 202 | 59 | ≤60 | ≤950 | Closing/latching speed adjustable Backcheck adjustable (EN2/3/4 by template) |
|
| D3023BW | |||||||||||
