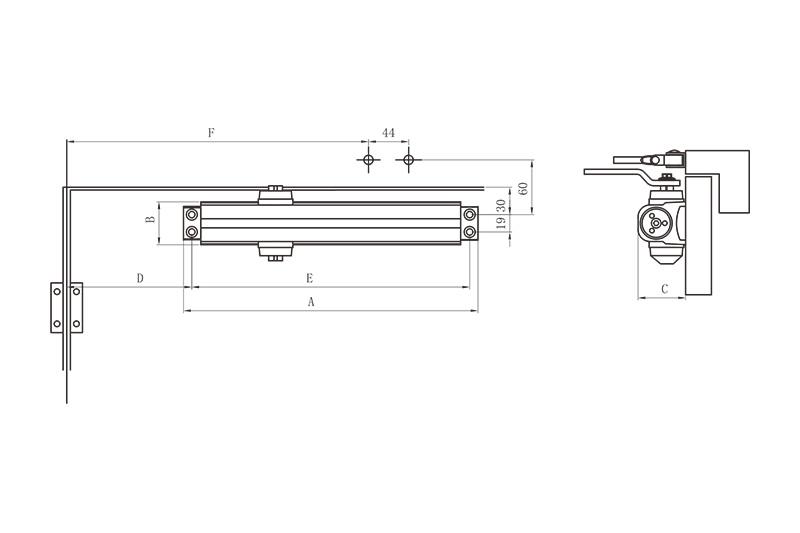

| Item | Closer Size | Overall dimension | Installation dimension | Applicable door weight(kg) | Applicable door width(mm) | Maximun opening angle | Function | Please install according to the instruction | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||||||

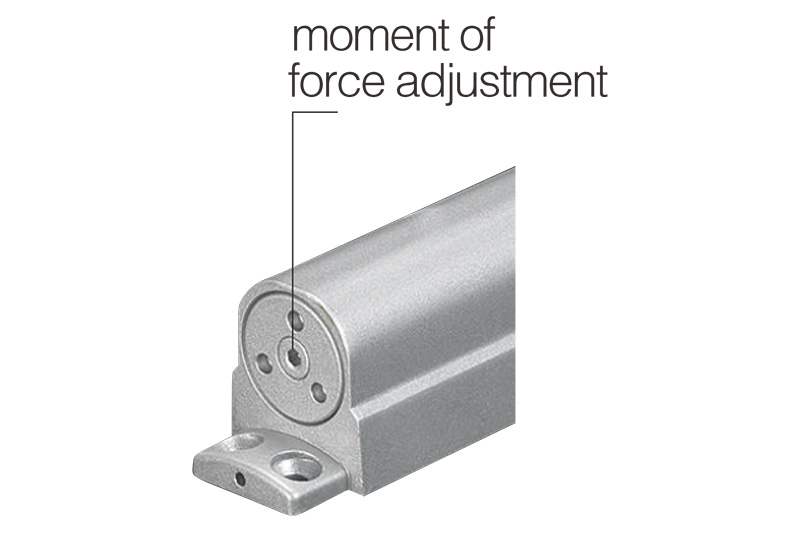

| 301-6BW | 1#-6# | 323 | 47 | 52 | 191 | 305 | 331 | ≤150 | ≤1500 | 100° | Closing/latching speed adjustable Backcheck Spring power adjustable |
|
| 301-6BW | 1#-6# | 323 | 47 | 52 | 152 | 305 | 292 | ≤150 | ≤1500 | 130° | Closing/latching speed adjustable Backcheck Spring power adjustable |
|
| 301-6BW | 1#-6# | 323 | 47 | 52 | 114 | 305 | 254 | ≤150 | ≤1500 | 180° | Closing/latching speed adjustable Backcheck Spring power adjustable |
|
