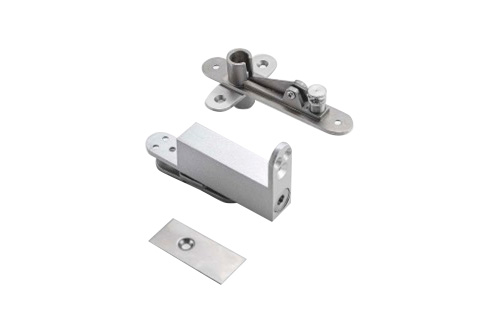

W01 Top and Bottom Pivot Hinge

Model: W01

Material: 304 Stainless Steel + Zinc Alloy

Maximum Door Height: 1500 x 2800 mm

Maximum Door Width: 950 mm

Maximum Load Capacity: 60 kg

Suitable Door Thickness: 32-50 mm

Positioning Type: 90-degree positioning, center bi-directional opening, maximum opening angle 180 degrees
